NSA8 - Phoenix

Phoenix, Arizona

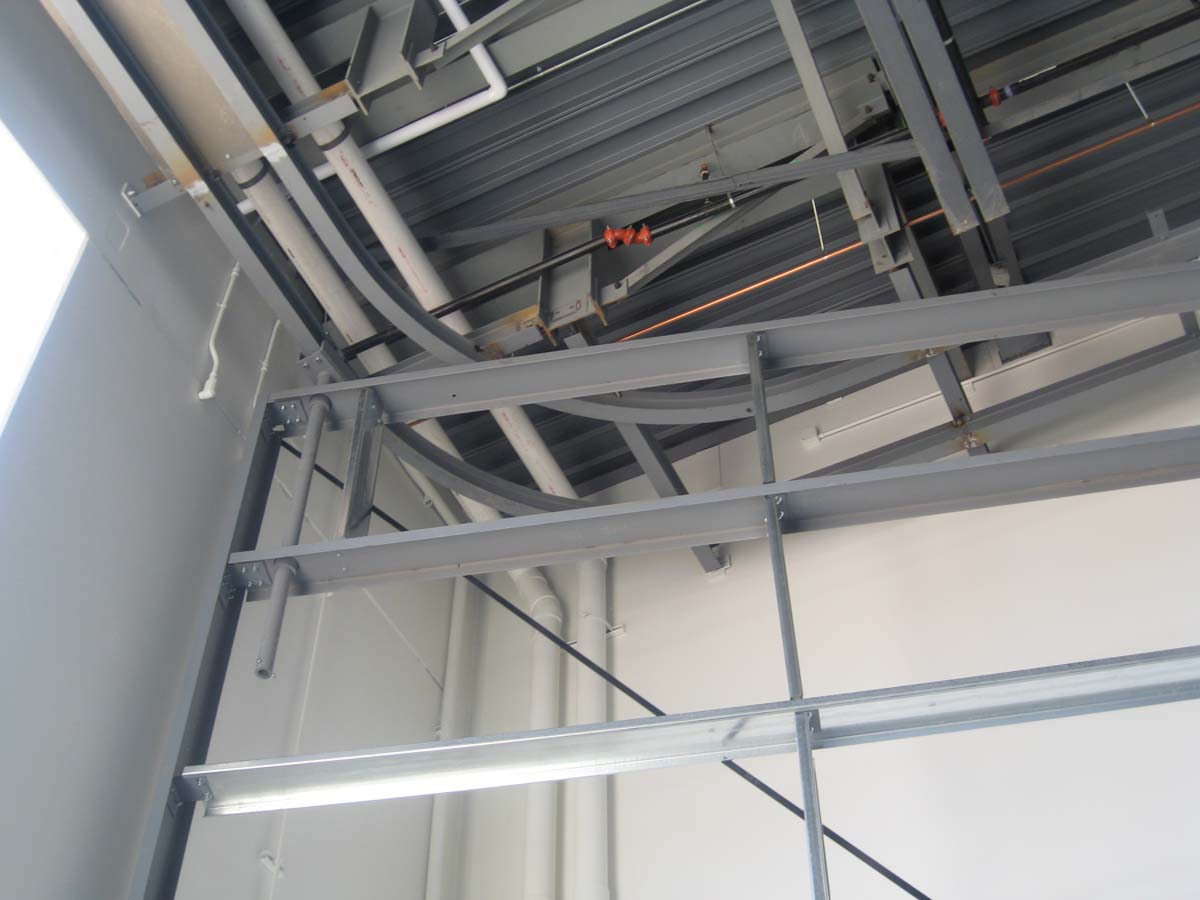

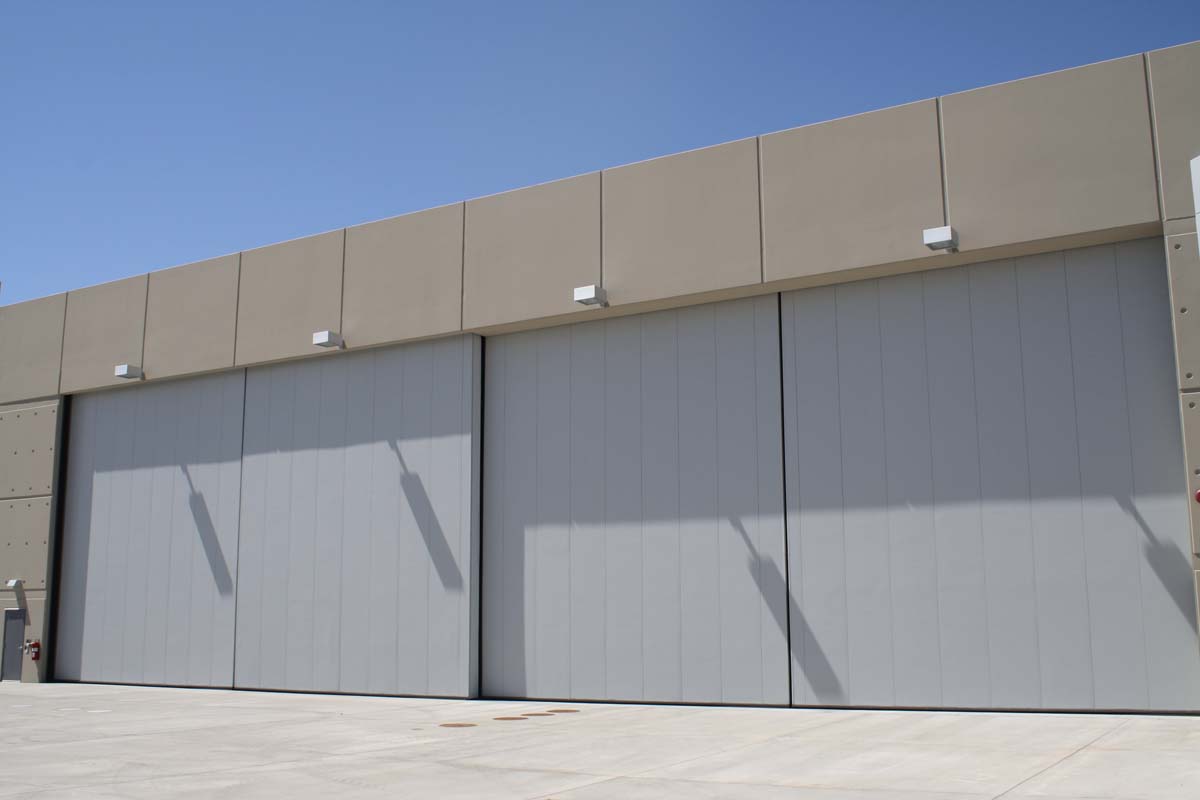

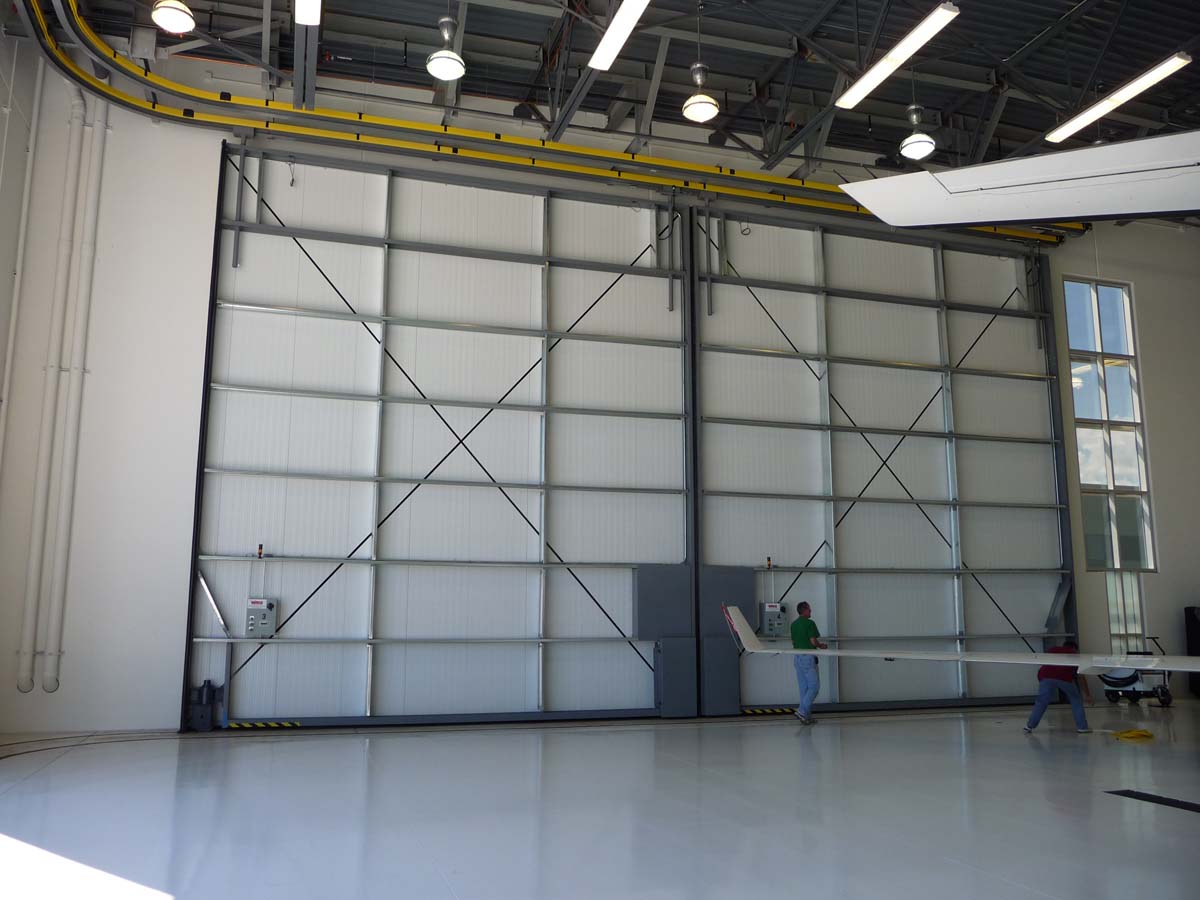

When faced with a premium site where land was severely limited, our engineering challenge was to design an aviation hangar that utilized nearly the entire property footprint, leaving no room for conventional door panel storage. Norco's innovative 90 Degree, One-Way Hangar Door System provided the ideal solution, expertly covering the opening without the need for traditional door pockets. This specialized hangar door system not only maximized the available space but also delivered an opening that spans nearly the entire width of the structure, ensuring optimal access and operational efficiency in a highly constrained environment.

    • 90 Degree, One-Way Hangar Door System
    • Door Opening: 100’ x 28’
    • Four individually operated hangar door leaves
    • No pockets required - store individually along interior walls
